BBV strand anchor
A permanent anchor for your building project: The strand permanent anchors from BBV Systems offer you clear qualitative advantages for permanent use (more than 2 years). A real support - especially on slopes and with lateral loads.

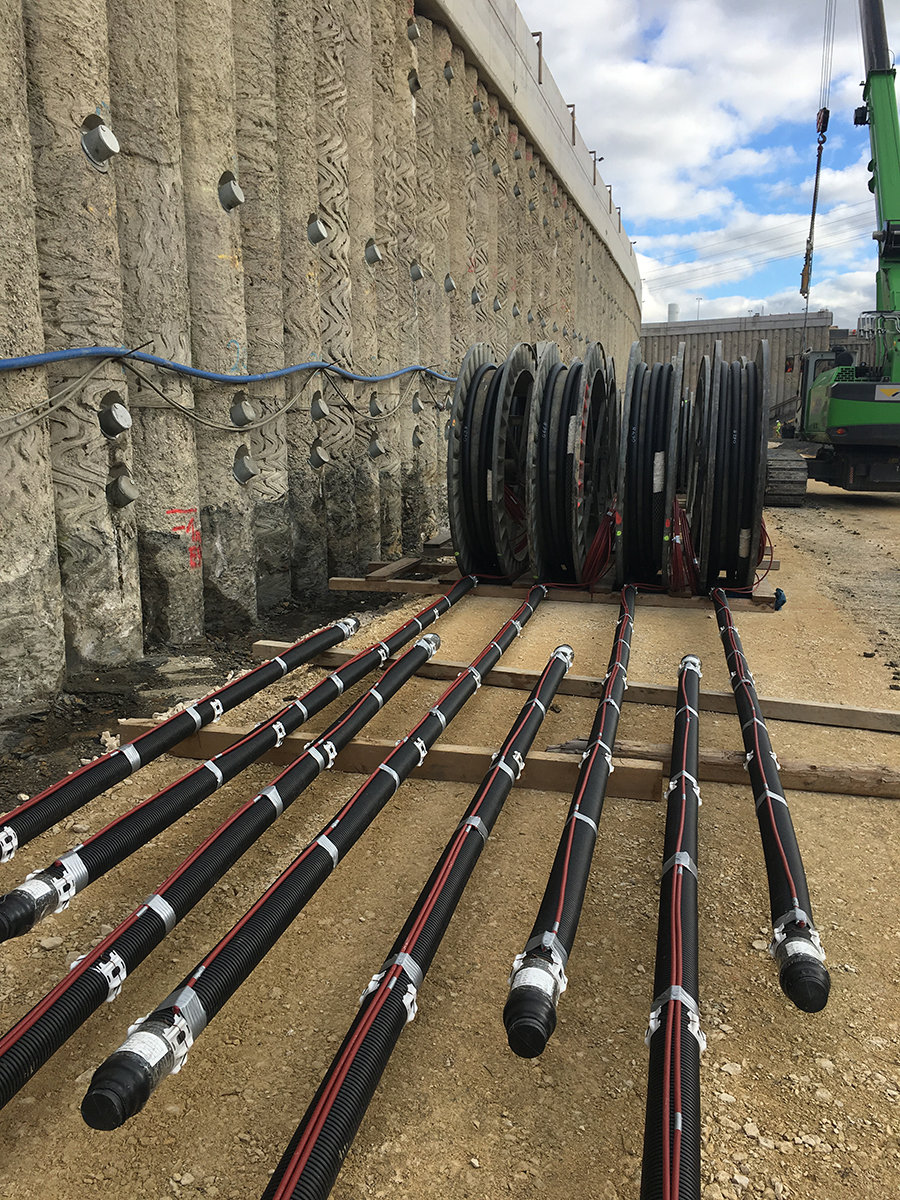

PROPERTIES OF THE BBV STRAND ANCHOR
The product portfolio of BBV Systems includes permanent strand anchors of type Standard and type Mono I+II. All permanent anchor types are designed for more than 2 years of use. The Standard type is available as a steel tension member with 2-12 strands, the Mono I+II type as a steel tension member with 2-31 strands.
The corrosion protection systems in the area of free steel length and anchorage length are listed for the different types in table "Design variants".
TYPE STANDARD
Type Mono I
Type Mono II
All BBV anchor systems can be factory-fitted with post-injection lances or backfill lances made of PE-HD in the standard sizes 13 x 2 mm and 16 x 2 mm.
Design variants
Design variant | Number strands | Corrosion protection systems in the | |
free steel length Ltf | Anchorage length Ltb | ||
Strand anchor length- Standard | 2-12 | Plastic smooth pipe, factory-filled with anti-corrosion compound and protected at the ends against water ingress | Corrugated plastic pipe, factory-filled with grout |
Strand anchor- Mono I | 2-31 | Plastic sheathing around each individual strand and filled with anti-corrosion compound at the factory; total strand bundle in corrugated plastic pipe, which is filled with grout or injection mortar in the borehole | Corrugated plastic pipe, filled with grout in the factory |
Strand anchor- Mono II | 2-31 | Plastic sheathing around each individual strand and filled with anti-corrosion compound at the factory; total strand bundle in corrugated plastic pipe, which is filled with grout in the borehole | Corrugated plastic pipe, filled with grout in the borehole |
